Structural Steel Detailing

Structural Steel Detailing

GVS-CORP offers structural steel detailing by a highly experienced staff on both SDS/2 and Tekla Structures. We provide the highest quality drawings and 3D models to our customer’s standards including all relevant information required for ordering, fabrication and erection. We are familiar with regulations and guidelines per OSHA and AISC standards.

Our detailing service includes provision of 3D general arrangements, assembly drawings, advanced bill of materials, anchor bolt layouts, material order lists, member preparation details, layout instructions.

Specialization in Structural Steel

  • Industrial Projects - Water Treatment Plants
  • Parking Garages - Nuclear Facilities
  • High-Rise and Low-Rise Buildings - Power Stations
  • Condominiums - Nuclear Facilities
  • Highways - Conveyor Systems
  • Bridges - Process Plants
  • Airport Terminals - Aircraft Hangers

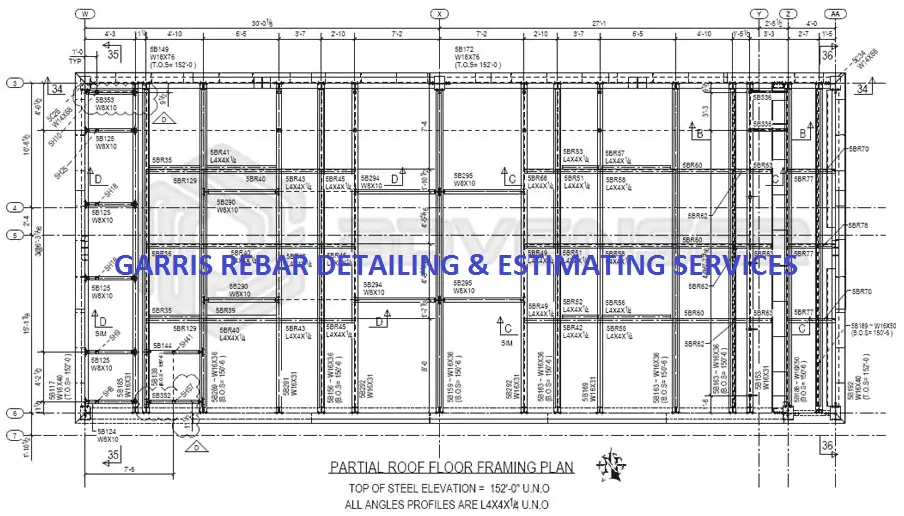

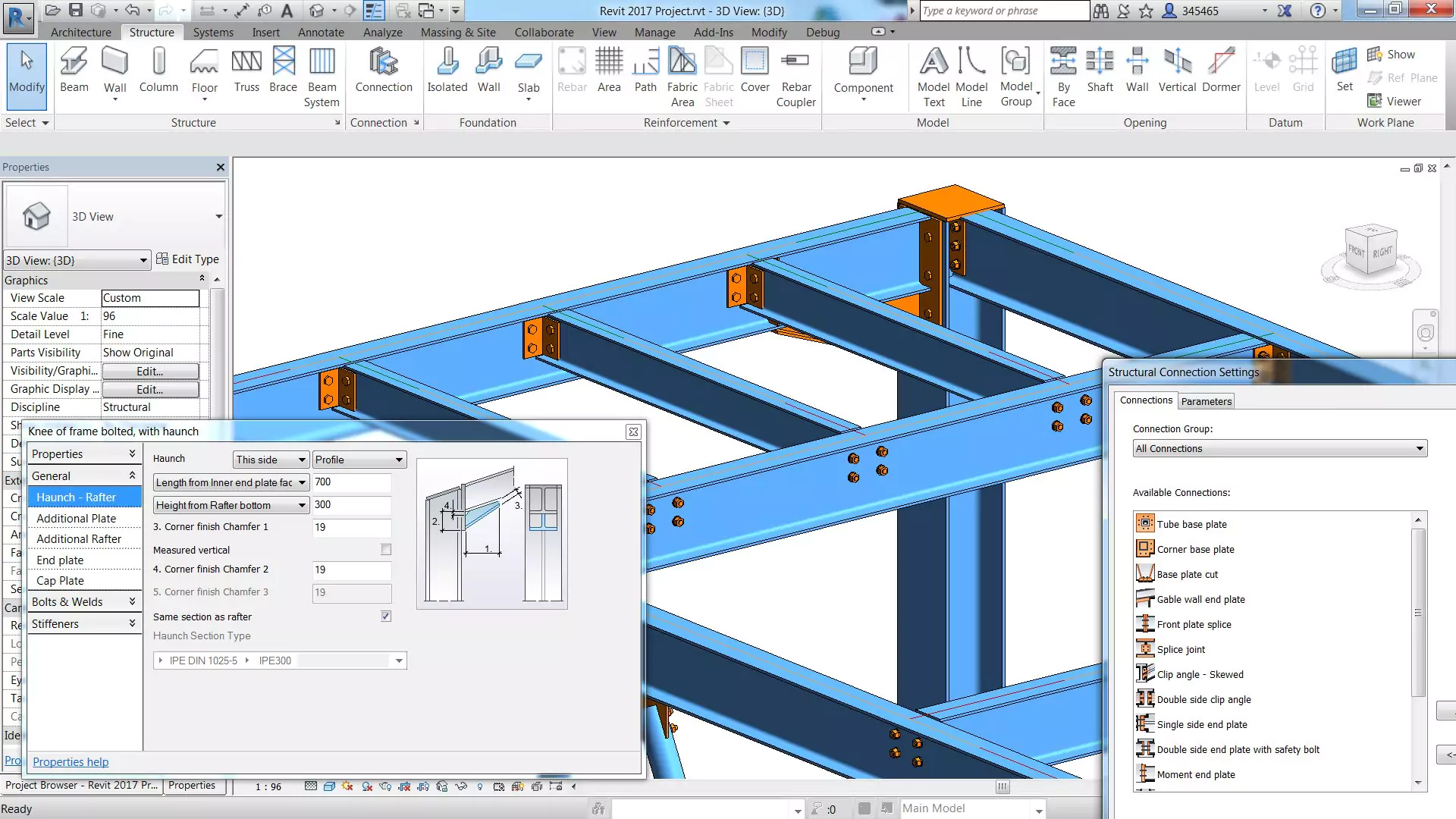

Sample Drawings
